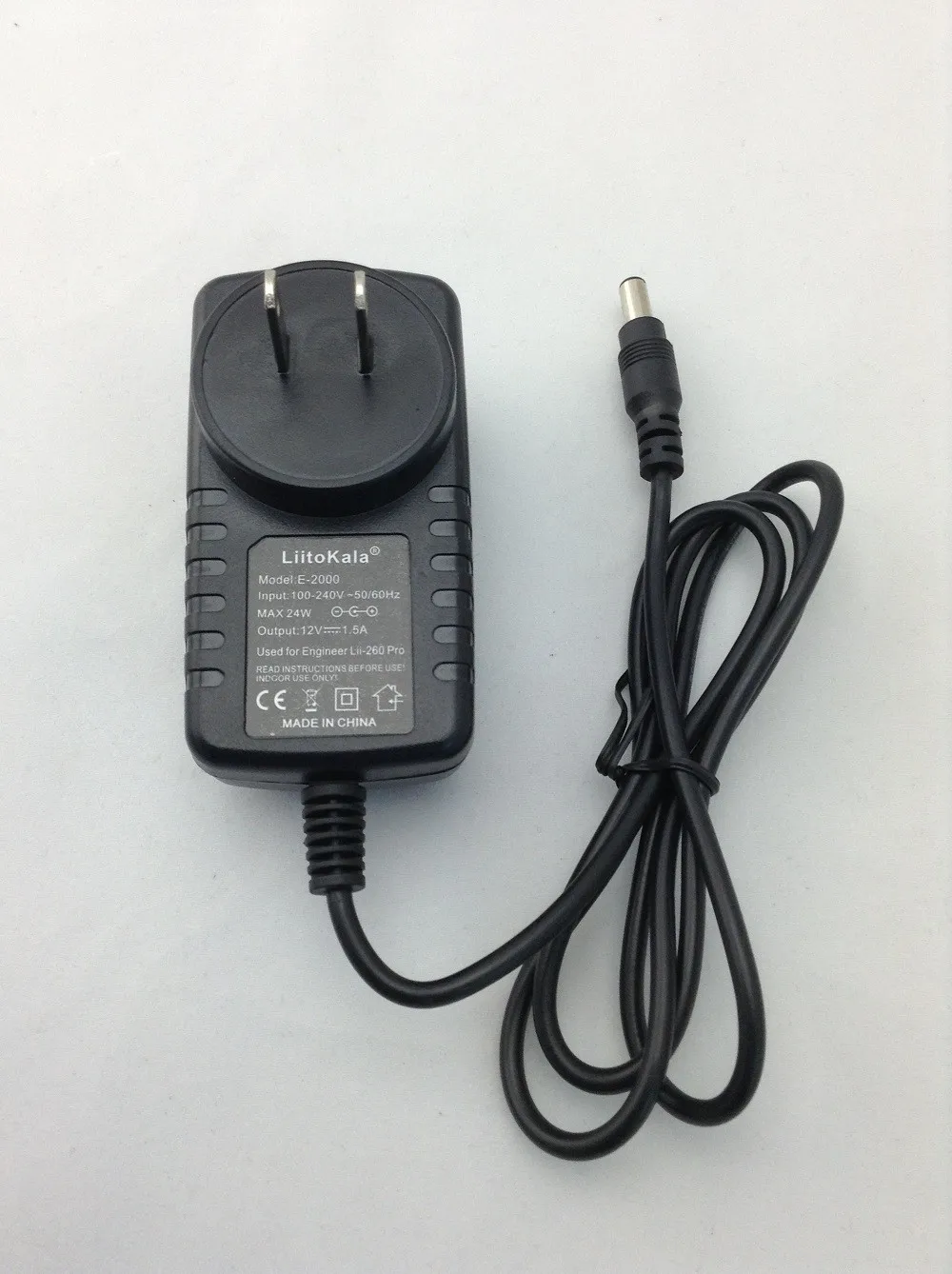

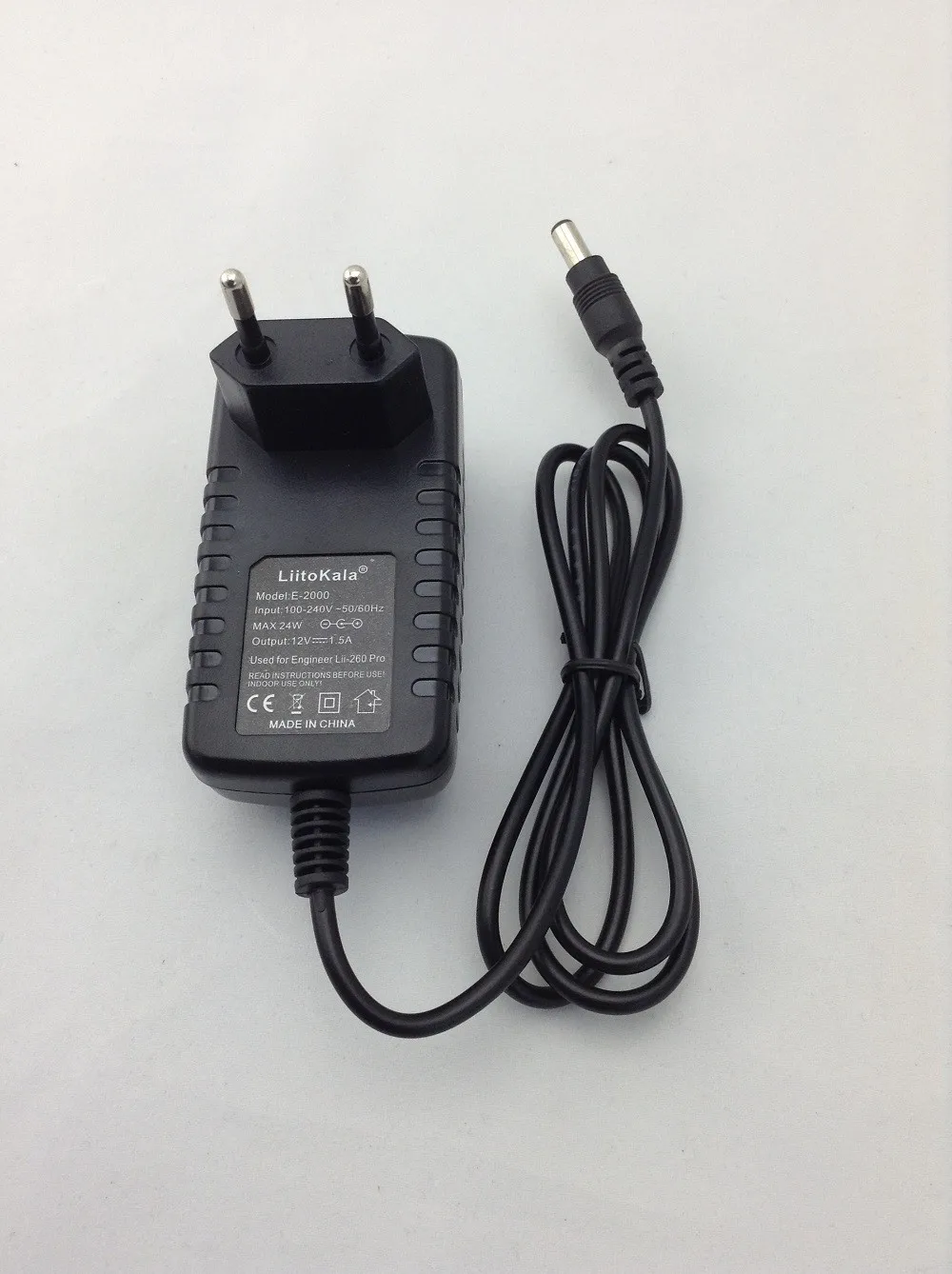

Product listing:Liitokala lii-260 charger 1 PCS+12 V 1.5 A adapter 1 PCS(Adapter with ul and European plug gauge plug, friends need what kind of plug,The charger screen has a white and blue screen, please select the color you want when buying.
please leave a message, thank you)

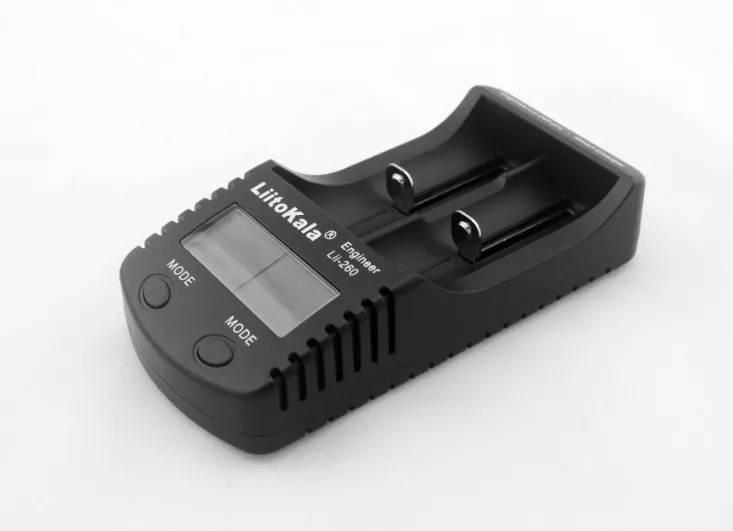

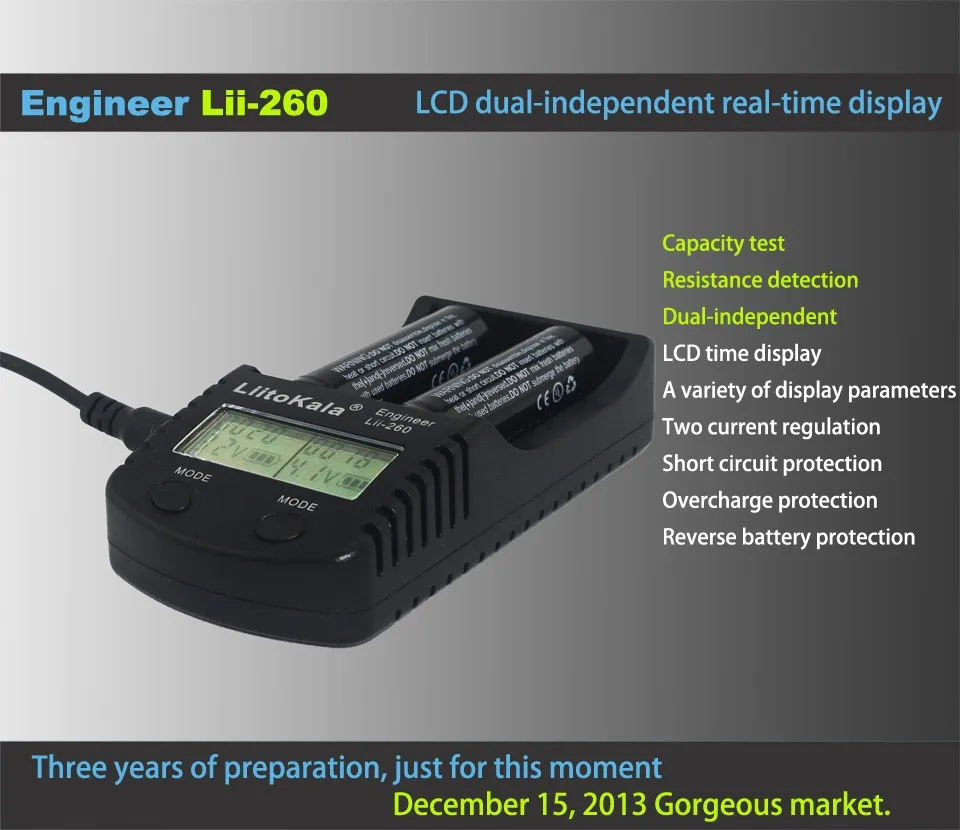

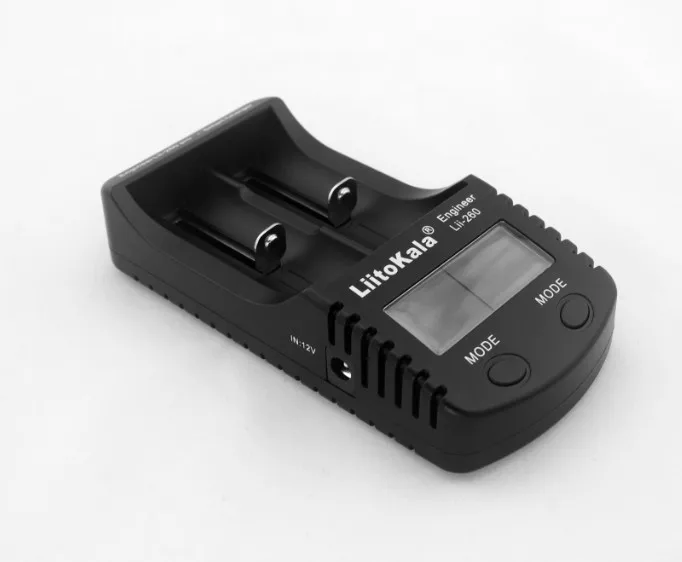

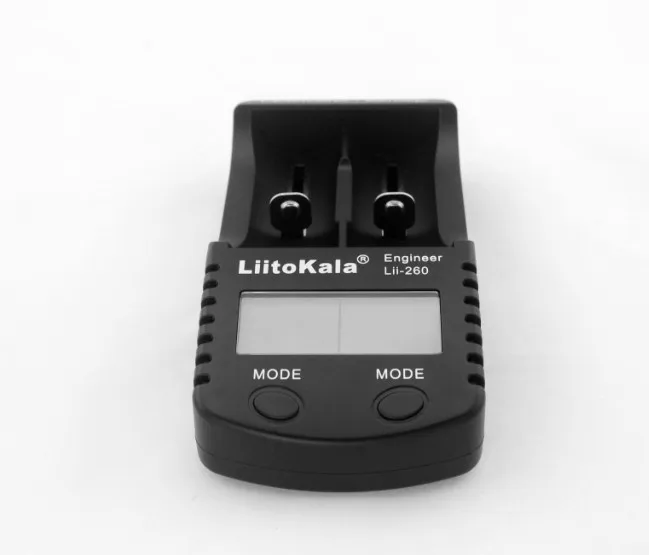

Liitokala lii-260 chargerThe product description:
engineer lii-260 instruction for use
- a , warning
the 1.1 charger only serve lithium ion battery cylindrical .
1.2 before use , please carefully instruction manual , note rechargeable battery of the recommended charge current , don\'t recommended above current charge .
1.3 do not use other / ac dc adapter .
1.4 charger charge discharge may fever , noticing don\'t scald .
1.5 stop , please remove ac power supply .
1.6 can only in normal indoor use .
second , features
2.1 two kinds of charge current adjust ( 500ma / 1000ma ) .
2.2 can various specifications ( 18650/26650 ) battery simultaneously charge .
2.3 every battery display lcd have independent charge parameter
2.4 charger mode , different charge current charge .
2.5 dischareger mode ( first full electric again discharge ) , detect battery capacity .
2.6charger and dischareger two models can be done concurrently .
2.7 each one battery are available at or autocephalous / set charge capacity detection function .
2.8 variety display mode , current ( ma ) / capacity ( mah ) / voltage ( v ) / time ( h ) / resistance ( mr ) .
2.9 30mm with \'s / ac dc adapter .
three , keys ( mode ) description
3.1 charger have two buttons , control of scranton , brief convenient to use
3.2 in any case key hold down mode and keep 3 seconds change charger ( charge ) mode or discharege ( capacity detection ) mode , then in 8 seconds tootle again change current , current 8 selected seconds after into gear , in a can light press ( mode ) key , view current ( ma ) / capacity ( mah ) / voltage ( v ) / time ( h ) / resistance ( mr ) .
four , operation mode
4.1 charge mode ( charge mode )
4.1 . 1 when switching-in power supply charger when , charger all lcd screen instant full bright , if batteries not put into will show null , if is bad battery put into also display null .
4.1 . 2 when charger rslite into the battery , charger in 3 seconds about measured out battery resistance , after the system automatic enter the charge current selected mode , screen in & ldquo . 500ma & rdquo . thundered the \'s 8 seconds flicker , in the period can pass key mode choice 500ma or 1000 ma current charge , system in 8 seconds after will be your choice lock current charge , if in 8 seconds , no make a set the , so system automatic to 500ma current charge , current at this time won\'t change , if you want to change , reset battery need .
4.1 . 3 user need advertent rechargeable battery the maximum charge current , if you need fast charge , suggest to use 500ma charge , this is the most safe and for battery also the most favorable
4.1 . 4 charge mode , through mode gently press key can switch to view charge battery power ( mah ) / charge time ( h ) / battery resistance ( mr ) / charge current ( ma ) , 4 types , batterycharge full after , will show full , undermost a row of small word display charge end ( charge end ) .
4.2 discharge mode ( capacity detection mode )
4.2 . 1 discharge mode is battery full , then put the battery discharge and record discharge detection battery thereby coulant capacity , will automatically after the battery full .
4.2 . 2 - - battery put in out battery charger determination resistance after , arbitrary in the state of long mode key press 3 into the second discharge model discharge
into the discharge - - after mode , screen appear & ldquo . 500ma & rdquo . thundered the \'s 8 seconds flicker , in the period can pass key mode choice 500ma or 1000 ma current , system in 8 seconds after will be your choice lock current , if in this 8 seconds , no make a set the , then will automatically lock system 500ma current battery charge ( selected current this time is system battery charge of current ) .
- - when battery full after , system automatic to 500ma current battery discharge and record discharge battery power , thereby detection battery capacity , when the screen appear when discharher and , capacity screen model end , of the indemnifiable screen flicker of electricity parameter for battery actual capacity . .
- - capacity detection mode after the end of , charger to \'ll before the selected current characteristic again for battery charge , sufficienty until .
five . specific parameters
5.1 : dc input voltage 12v / 1.5a
5.2 lithium battery charge current : 2x ( 4.2v 500ma ) , 2x ( 4.2v 1000ma )
5.3 can charge pool : specification 18650 , 26650 etc
termination 5.4 : way smart voltage monitor
shape : 5.5 measurement 132mm ( long ) * 65mm ( wide ) * 31mm ( high )
