Item specifics
  • Brand Name: MLLSE
  • is_customized: Yes
  • Application : Mobile Phone
  • Supply Voltage : 5V
  • Operating Temperature : -40°C to +85 °C
  • Type : Logic ICs
  • Model Number : SIM900
Product Description

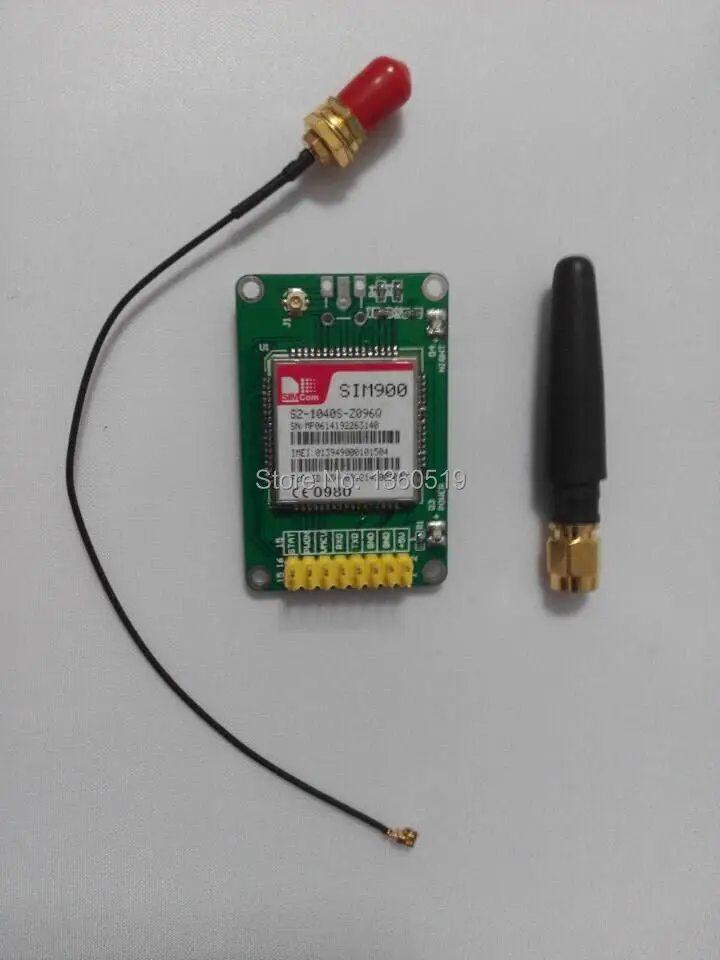

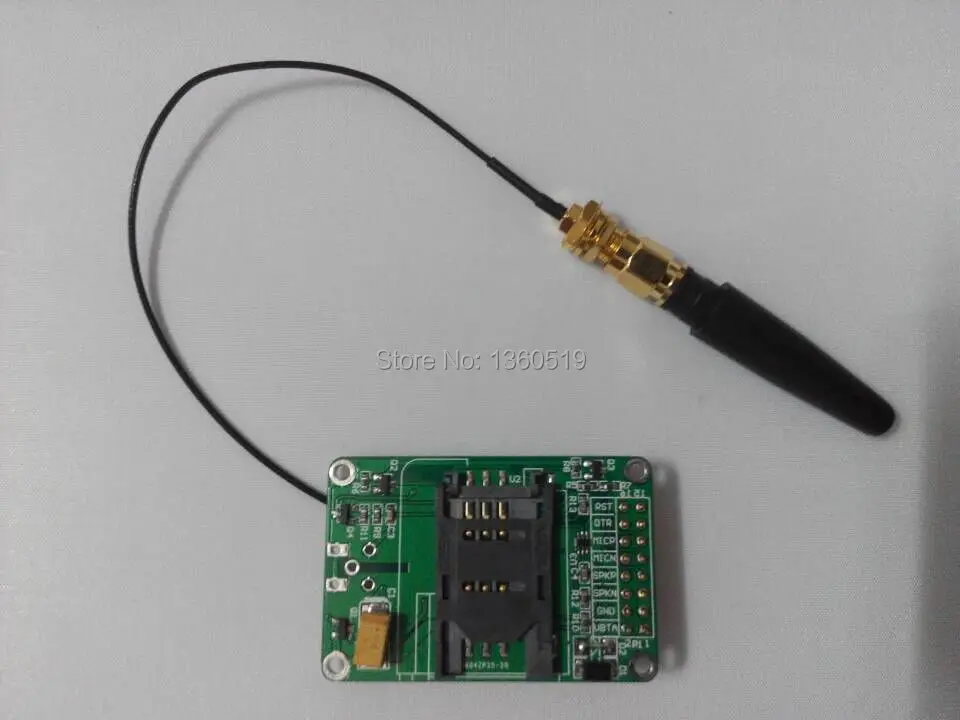

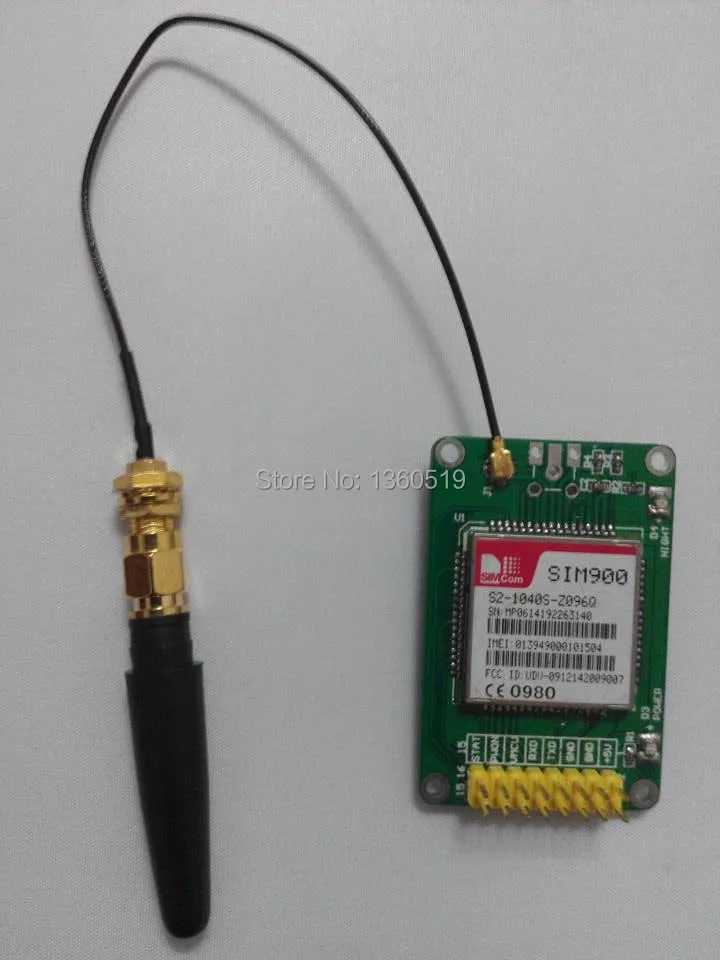

SIMCOM SIM900 Development Board Quad-band GSM GPRS Shield for Ar-duino

This is a GSM/GPRS shield for Arduino and based on  the SIM900 Quad-band GSM/GPRS module. It is controlled via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands), and fully compatible with Arduino / Itead uino and Mega.

Now the IComsat update from v1.0 to v1.1. What\'s NEW of 1.1:

Support the software power on

Add the 3.5mm socket for microphone and earphone interface on shield



1. Quad-Band 850/ 900/ 1800/ 1900 MHz

2. GPRS multi-slot class 10/8

3. GPRS mobile station class B

4. Compliant to GSM phase 2/2+

5. Class 4 (2 W @850/ 900 MHz)

6. Class 1 (1 W @ 1800/1900MHz)

7. Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)

8. Low power consumption: 1.5mA(sleep mode)

9. Operation temperature: -40°C to +85 °C

10. Supply voltage range: VBTA (3.8-4.5V)   or  (5v/2A)

11. Baud Rate:9600

12. UART (TTL) 3.3V and 5V



13. Fully functional: telephone, SMS, GPRS network communication MMS (MMS), base station location (LBS), dual-tone multi-frequency (DTMF)

14. 16pin definitions:

1pin: +5 V

2pin: vbta 3.8-4.5v (Lithium Battery)

3pin: gnd

4pin: gnd

5pin: gnd

6pin: Speaker (-)

7pin: TXD

8pin: speaker (+)

9pin: RXD

10pin: mic (-) = Voice input

11pin: for mcu (it is needed sometimes)

12pin: mic (+) = voice input

13pin: power on (Connection with pin1 or pin2)

14pin: dtr (sim900a module wakeup)

15pin: status (sim900a module status)

16pin: rst (sim900a Module reset)



SIM900-5
